Eco-friendly packaging for unmatched efficiency

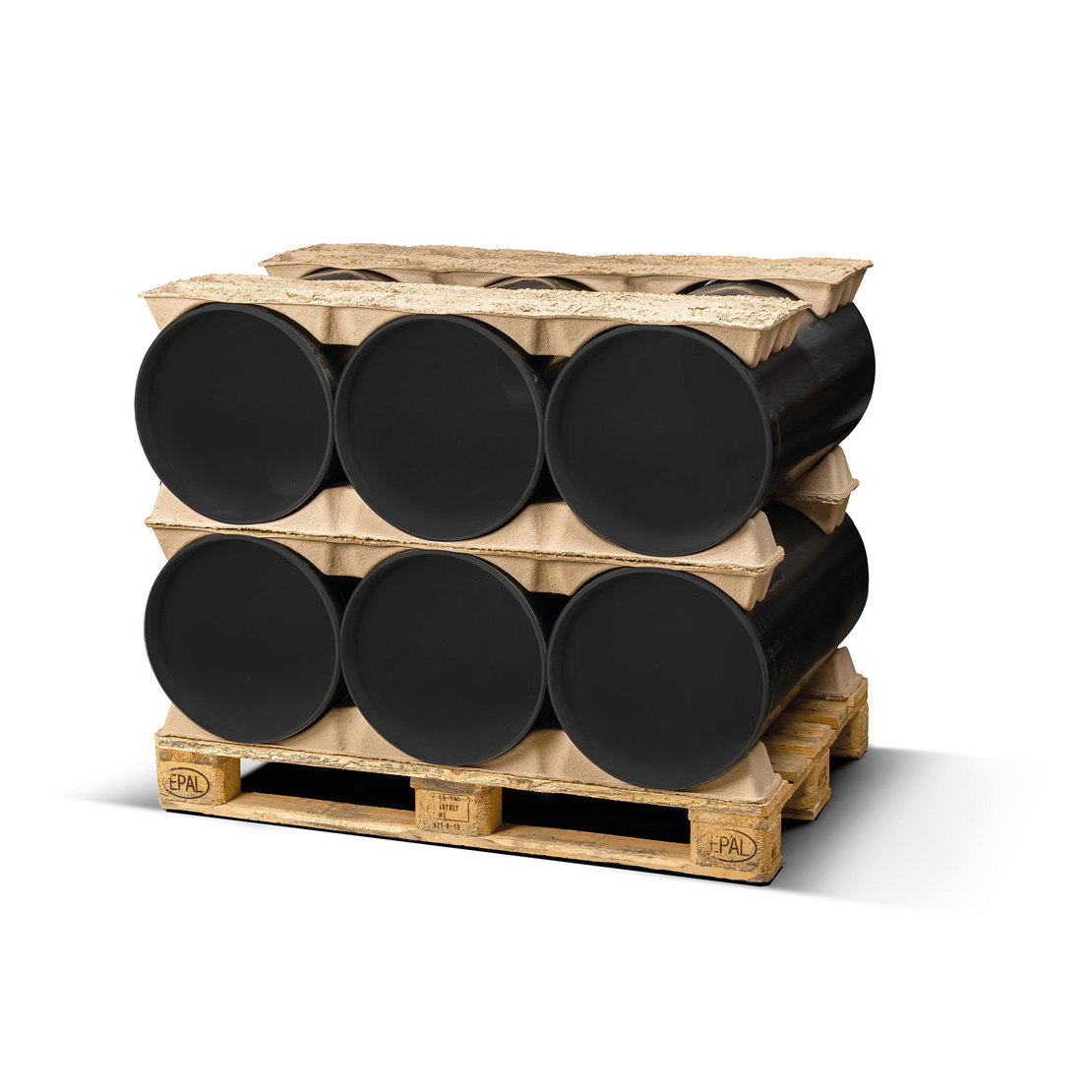

Our Rollguards are moulded pulp roll cradle solutions for the efficient stacking, storage, and safe transport of material rolls on pallets. The space-saving design makes optimal use of pallet and storage space while reliably protecting the rolls from transport damage.
Rollguards are suitable for a wide range of material rolls, including film, paper, textiles, metal tubes, and rolls of fencing.
Direct comparison: Compared to a conventionally packed pallet in pyramid formation, Rollguards can increase pallet space utilisation by up to 100%. This allows you to transport more rolls with less empty space per shipment.
Direct comparison: in contrast to a conventionally packed pallet in a pyramid form, with roll guards the utilisation of the space on the pallet can be increased by up to 100 %.
Benefits of Rollguards Roll Packaging
Up to 100% more rolls per pallet: The space-saving pallet packaging maximizes the use of pallet space, allowing you to transport more rolls per shipment. Improving logistical efficiency and reducing unnecessary packaging volume.
Various product sizes: Our Rollguards are available in different sizes and can be flexibly adapted to different transport requirements.
Reduced storage, handling, and distribution costs: Reduced storage, handling, and distribution costs: The compact design reduces space requirements and therefore lowers storage, handling, and distribution costs.
Enhanced roll protection: soft surfaces provide special protection to the outer layers of the rolls, minimizing potential damage during transport.
Reduced transport damage: The secure, stable construction protects your material and reduces the risk of damage during transport.
Water-repellent: The water-repellent properties provide additional protection against moisture and make Rollguards suitable for overseas transport as well.
100% biodegradable and recyclable: Made from recycled paper, our Rollguards are fully biodegradable, contributing to a more sustainable future.
Easy disposal: the Rollguards can be effortlessly disposed of in paper waste, providing a simple and eco-friendly solution for the disposal of used packaging materials.
Sustainability & the New EU Packaging and Packaging Waste Regulation (PPWR)
Since 12 August 2026, the EU Packaging and Packaging Waste Regulation (PPWR, Regulation (EU) 2025/40) has been binding for packaging used in industry, trade, and commercial supply chains, regardless of material. Rollguards already supports two key PPWR requirements today:
- Minimising weight and volume: Rollguards reduces unnecessary empty space on the pallet, noticeably lowering packaging volume per transported roll.
- Recyclability: As a moulded pulp product made from 100% recycled paper, Rollguards is fully biodegradable and recyclable – a sustainable alternative to foam or plastic packaging.
With Rollguards, you can choose a packaging solution that supports key PPWR requirements such as material efficiency and recyclability while helping to reduce your logistics costs.
Frequently Asked Questions About Roll Packaging with Rollguards
How does moulded pulp roll packaging work?
Rollguards are placed in front of and behind the material rolls on the pallet. Their shape securely holds the rolls in place, prevents slipping, and allows for significantly denser stacking than conventional pyramid packaging. The product is also known in the industry as a roll cradle or fibre cradle
Which types of rolls is Rollguards suitable for?
Rollguards is suitable for material rolls made of film, paper, and textiles, as well as metal pipes and fencing rolls.
Is Rollguards sustainable and PPWR-compliant?
Yes. Rollguards is made from 100% recycled paper, is biodegradable and recyclable, and thus supports the requirements of the new EU Packaging and Packaging Waste Regulation (PPWR) for material efficiency and recyclability.
How can I get pricing or a sample?
Contact our sales team – we’re happy to advise you on sizes, pricing, and individual requirements.
Product variations
1 Roll Cradle
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-34/1 CK | 30 | 50 | 45 | 34 | 500 |
| EU-48/1 CK | 80 | 100 | 60 | 48 | 200 |
| EU-60-80/120 | 60 | 80 | 120 | 48 | 124 |
| EU-80-100/120 | 80 | 100 | 120 | 56 | 84 |
| EU-65/1 | 60 | 65 | 65 | 40 | 180 |
| EU-80/1 | 75 | 80 | 80 | 20 | 500 |
| EU-100/1 | 81 | 100 | 100 | 28 | 156 |
2 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-80/2 | 35 | 40 | 80 | 35 | 210 |
| EU-90/2 | 40 | 45 | 90 | 35 | 180 |
| EU-100/2 | 46 | 50 | 100 | 35 | 180 |
| EU-110/2 | 51 | 55 | 110 | 35 | 180 |
| EU-115/2N | 56 | 57 | 115 | 18 | 300 |
| EU-120/2 | 58 | 60 | 120 | 40 | 140 |
3 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-80/3 | 24 | 27 | 80 | 30 | 400 |
| EU-100/3 | 30 | 33 | 100 | 35 | 200 |
| EU-110/3 | 34 | 37 | 110 | 30 | 180 |
| EU-120/3 | 38 | 40 | 120 | 30 | 160 |
4 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-75/4 | 16 | 18 | 75 | 30 | 280 |
| EU-80/4 | 17 | 20 | 80 | 20 | 600 |
| EU-100/4 | 20 | 25 | 100 | 30 | 210 |
| EU-105/4 N | 24 | 26 | 105 | 19 | 300 |
| EU-106/4 | 24 | 26 | 106 | 30 | 210 |
| EU-110/4 | 26 | 28 | 110 | 30 | 250 |
| EU-120/4 | 29 | 30 | 120 | 30 | 210 |
5 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-80/5 | 14 | 16 | 80 | 19 | 500 |
| EU-100/5 | 17 | 20 | 100 | 30 | 200 |
| EU-110/5 | 19 | 22 | 110 | 30 | 190 |
| EU-116/5 | 19 | 21 | 116 | 30 | 210 |
| EU-120/5 | 21 | 24 | 120 | 30 | 196 |
6 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-100/6 | 14 | 16 | 100 | 20 | 330 |
| EU-110/6 | 16 | 18 | 110 | 20 | 210 |
| EU-115/6 | 16 | 19 | 115 | 20 | 250 |
| EU-120/6 | 18 | 20 | 120 | 25 | 320 |
7 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-120/7 | 14 | 17 | 120 | 25 | 300 |
9 Roll Cradles
| Part Name | Roll Diameter Min. (cm) | Roll Diameter Max. (cm) | Cradle Length (cm) | Cradle Width (cm) | Parts per Pallet (34/LKW) |
|---|---|---|---|---|---|
| EU-120/9 | 11 | 13 | 120 | 20 | 300 |
If you would like pricing, samples or require further support,
please contact our sales team.
If you have a specific development request,
please also see our custom products.
